Flanges & Fittings

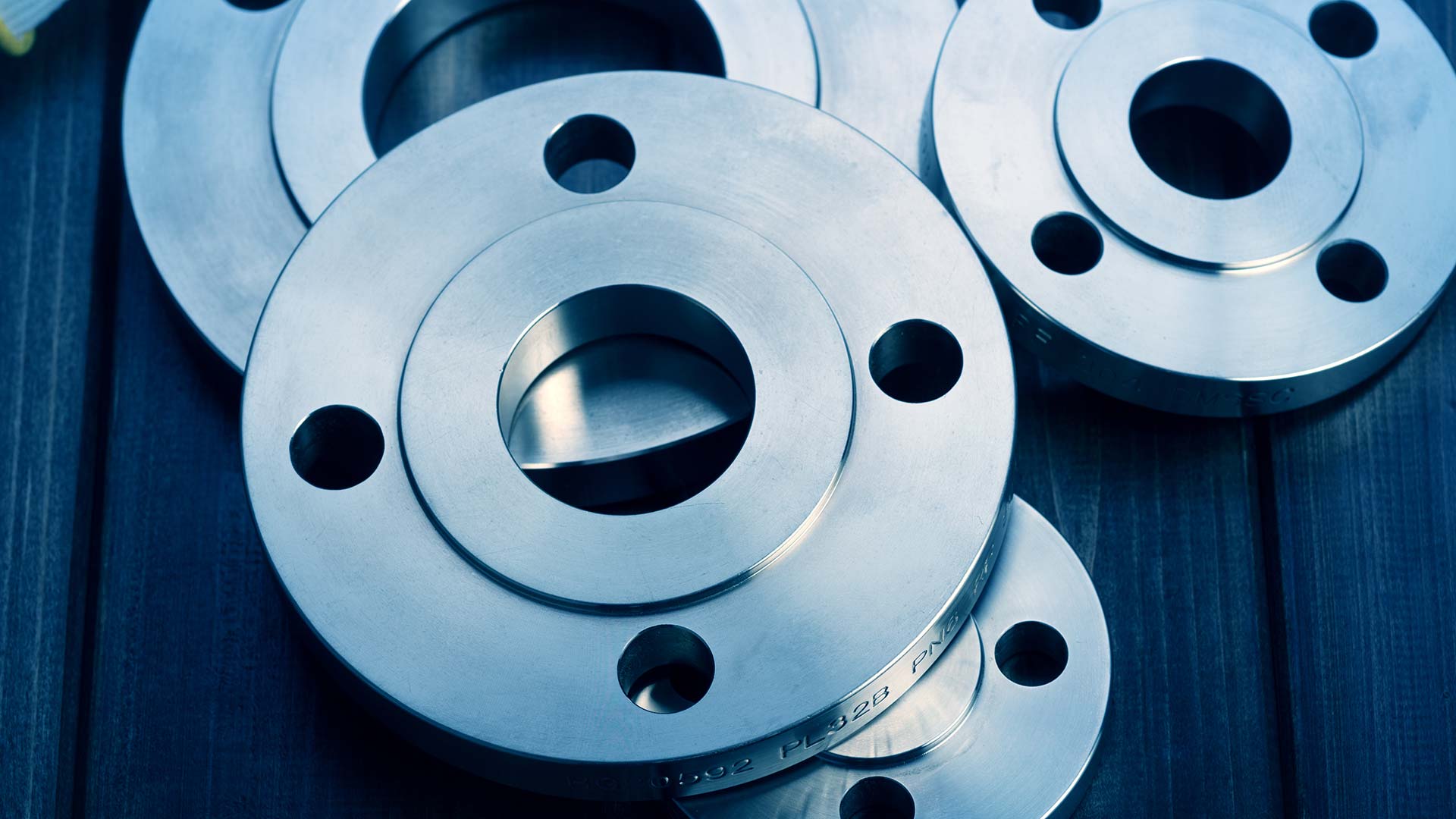

Flanges:

Configurations:

• Slip On
• Weld Neck
• Threaded
• Lap Joint
• Socket Weld
• Blind
• Reducing (Threaded and Socket Weld)

Available Facings:

• Raised Faced, Flat Face, and RTJ

Sizes:

• ½” thru 24” (Other sizes are available subject to request)

Pressure Classes:

• 150# to 2,500# (Other pressure classes are available subject to request)
• Larger sizes and API Flanges are available subject to request

Applicable Specifications:

• ASTM A/SA-105, ASTM 694 F-52, F-60, F-65, A350-LF2, A182- F304(L), F316(L)
• A182-F11, F22, F5, and F9
• Dimensional: ANSI B16.5, B16.1, and MSS SP-44

Domestic and Global manufacturers are available.

Weld Fittings:

Configurations:

• 45°, 90°, and 180° Elbows (Other degrees’ available subject to request)
• 3R Elbows – 45° & 90°, Segmentable.
• Reducing Tees and Elbows
• Straight Tees
• Concentric and Eccentric Reducers
• Caps
• Crosses
• Laterals
• Stub Ends

Sizes:

• 2” to 24” (Other sizes are available subject to request)

Wall Thickness:

• Standard, Extra Heavy, True and Special Schedules

Applicable Specifications:

• ASTM A/SA234-WPB, WPH-Y42 thru WPH-Y65, A420-WPL6, & A860 304(L), 316(L), A234-WP11, WP22, WP5, & WP9 (other alloys are available subject to request)
• Dimensional: ANSI B16.9, B16.11, B16.25, B16.28, and MSS SP-25, MSS SP-48 and MSS SP-75.

Steel Fittings, Nipples, Swages, and Bull Plugs:

Configurations:

• 45° and 90° Elbows
• Straight and Reducing Tees
• Couplings, Half Couplings
• Caps, Plugs and Bushings
• Crosses, Laterals, Street Elbows and Inserts
• Weldolets, Thredolets, Sockolets, Latrolets, and Elbolets
• Seamless and Welded Pipe Nipples
• Concentric and Eccentric Swages
• Bull Plugs

Diameter Size Range:

• 1/8” to 4” (Other sizes are available subject to request)

Length Size Range:

• Close thru 12” (Other sizes are available subject to request)

Steel Fitting Pressure Range:

• 2000, 3000, and 6000 (Other pressure classes are available subject to request)

Nipple, Swage, and Bull Plug Pressure Classes:

• STD, XH, S/160, and XXH

End Connections:

• Threaded, Butt Weld, and Socket Weld

Applicable Specifications:

• ASTM A/SA-105, A182-F304(L), F316(L), A182-F11, F22, F5, F9, A234-WPB, A106-Gr.B, A53 Gr. F, A350-LF2.
• Dimensional: ANSI B16.11, MSS SP-79, 83, 95 and 97
